Product description:

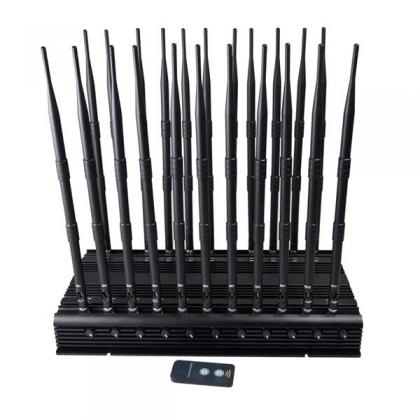

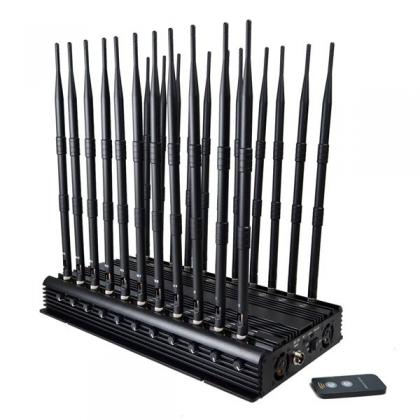

This is the latest designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Support frequencies:
- CDMA/RC868 (Frequency: 850-894MHz)
- GSM (Frequency: 925-960MHZ)
- DCS (Frequency: 1805-1880MHZ)
- 3G (Frequency: 2110-2170MHZ)
- 4G800 (Frequency: 758-821MHZ)
- 4G2600 (Frequency: 2570-2690MHZ)
- 4G2500 (Frequency: 2500-2570MHZ)
- 4G2300 (Frequency: 2300-2400MHZ)
- 5G 1500 (Frequency: 1427-1518MHZ)
- 5G 3.4G (Frequency: 3300-3600MHZ)
- 5G 3.8G (Frequency: 3600-3900MHZ)
- 5G 4.0G (Frequency: 3900-4200MHZ)
- WIFI 2.4G 11.b, g (Frequency: 2400-2500MHZ)
- WIFI 5.2G 11.a (Frequency: 4900-5500MHZ)
- WIFI 5.8G 11.a (Frequency: 5500-5900MHZ)
- GPS: L1 + Glonass L1 (Frequency: 1570-1580Mhz)
- GPSL2+L5 + Glonass L2 (Frequency: 1170-1280MHZ)
- GPSL3+L4 (Frequency: 1370-1390MHZ)
- Lojack Car Tracking (Frequency: 167-175MHZ)
- VHF (Frequency: 135-175Mhz)
- UHF/RC433 (Frequency: 400-470MHZ)
- RC315 (Frequency: 315MHZ)
- GSM/LORA (Frequency: 900-960MHZ)
- DCS/PCS (Frequency: 1805-1990MHZ)
- 3G, UMTS (Frequency: 2110-2180MHZ)
- 4G700 (Frequency: 700-803MHZ)
- 4G1700 (Frequency: 1710-1780MHZ)
- 5G 600 (Frequency: 617-675MHZ)
Basic Specifications
Output Power：Total 45W，1-3W each band
Jam Radius：2-40meters
Power Supply：AC110 or 220V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time：Not-stop Working
Product Size：450x 238x 60 mm（not Include Antenna）
Product Weight: appr.8kg

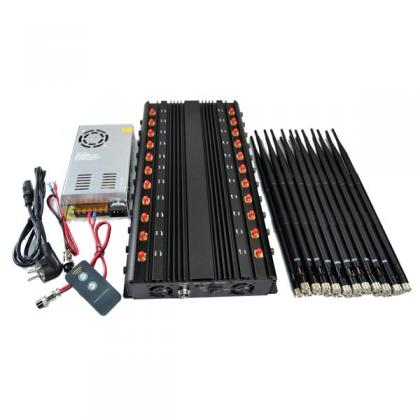

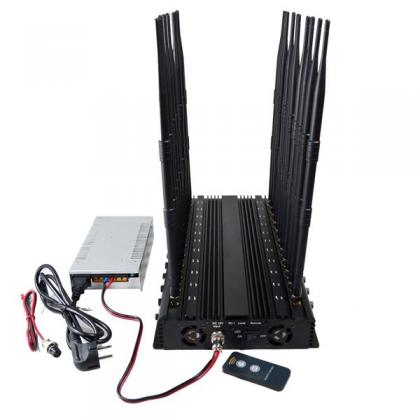

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1
Advantages:
Full bands 22 chancel design, Customized for special frequency range
High output power, Total up to: 45W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
